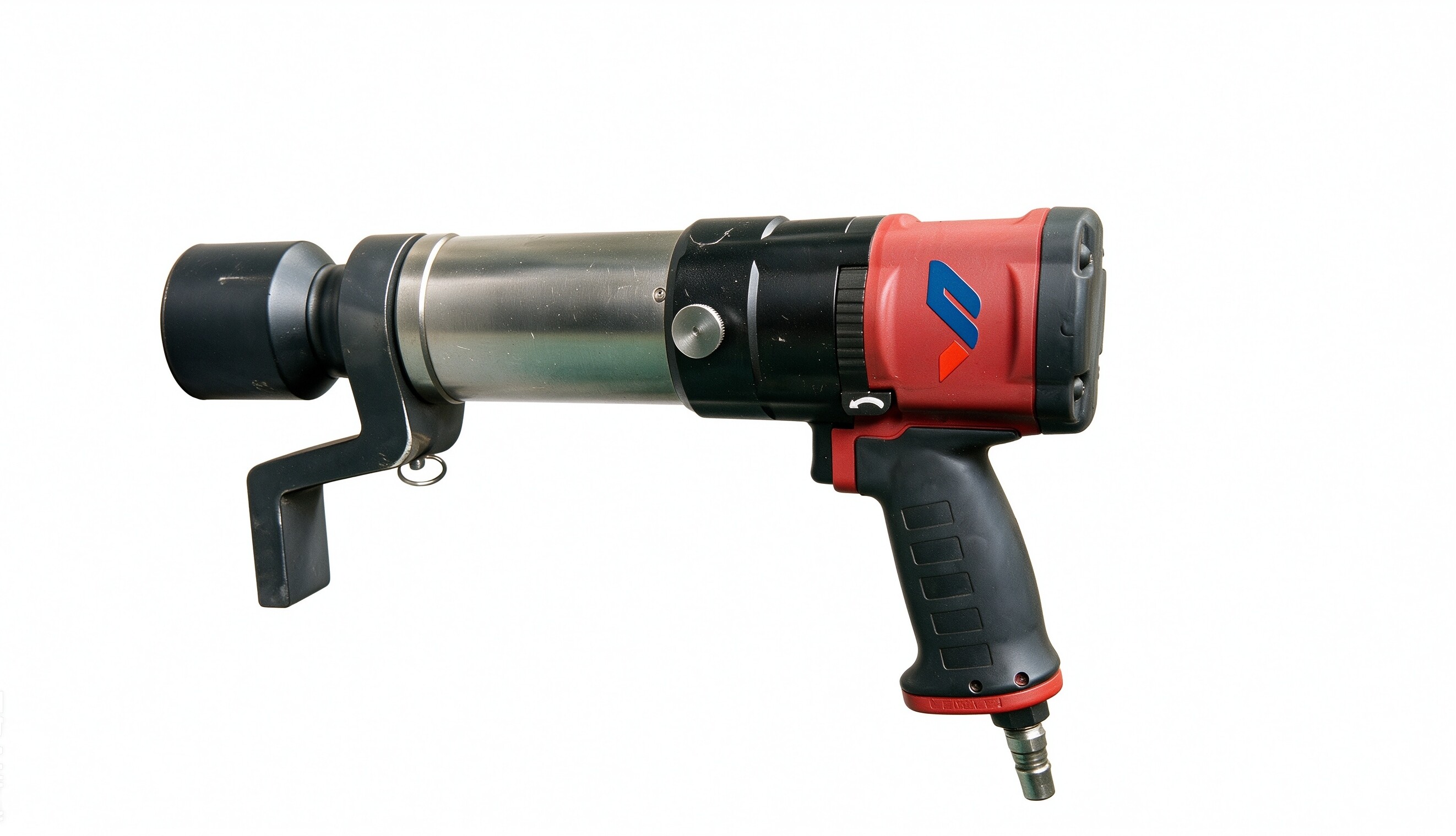

Pneumatic Torque Wrench
Pneumatically driven, lightweight design reduces operator fatigue during extended use. The 360° swivel joint adapts flexibly to various working angles. Explosion-proof construction ensures safe operation in flammable or explosive environments.
Product Inquiry
Product Description
Series:WY-PN Series
Product Line:Pneumatic Torque Wrench
- •Pneumatically driven, lightweight design for fatigue-free extended use
- •360° swivel joint for flexible adaptation to various working angles
- •Explosion-proof design for flammable and explosive environments
- •Easy to maintain, long service life
Considered Secure
The manufacturer's rated load and stroke are maximum safety limits. Best practice recommends using no more than 80% of these ratings!
Product Mockup
Product Specifications
Torque Range:
100-12000Nm
Work stress:
0.6MPa
Air Consumption:
0.3-1.2m³/min
Weight:
2.8-10 5kg
Product Series

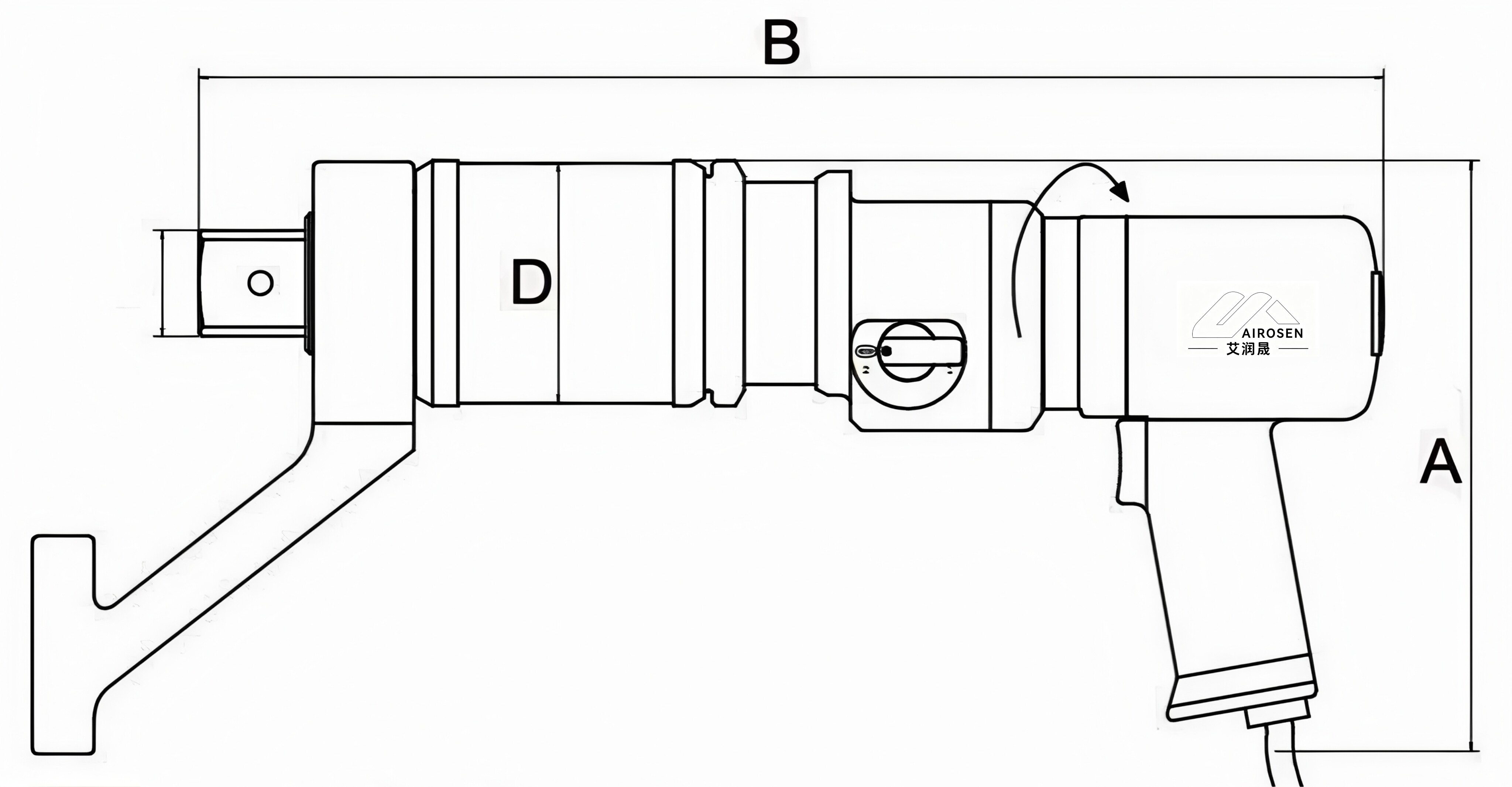

| Model | Torque Range (Nm) | Work stress | Air Consumption | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| WY-PN100 | 100-1000 | 0.6MPa | 0.3 m³/min | 2.8 | 320×140×220 |
| WY-PN500 | 500-5000 | 0.6MPa | 0.5 m³/min | 4.5 | 380×160×260 |
| WY-PN1000 | 1000-10000 | 0.6MPa | 0.8 m³/min | 7.2 | 450×180×300 |
| WY-PN2000 | 2000-12000 | 0.6MPa | 1.2 m³/min | 10.5 | 520×200×340 |
