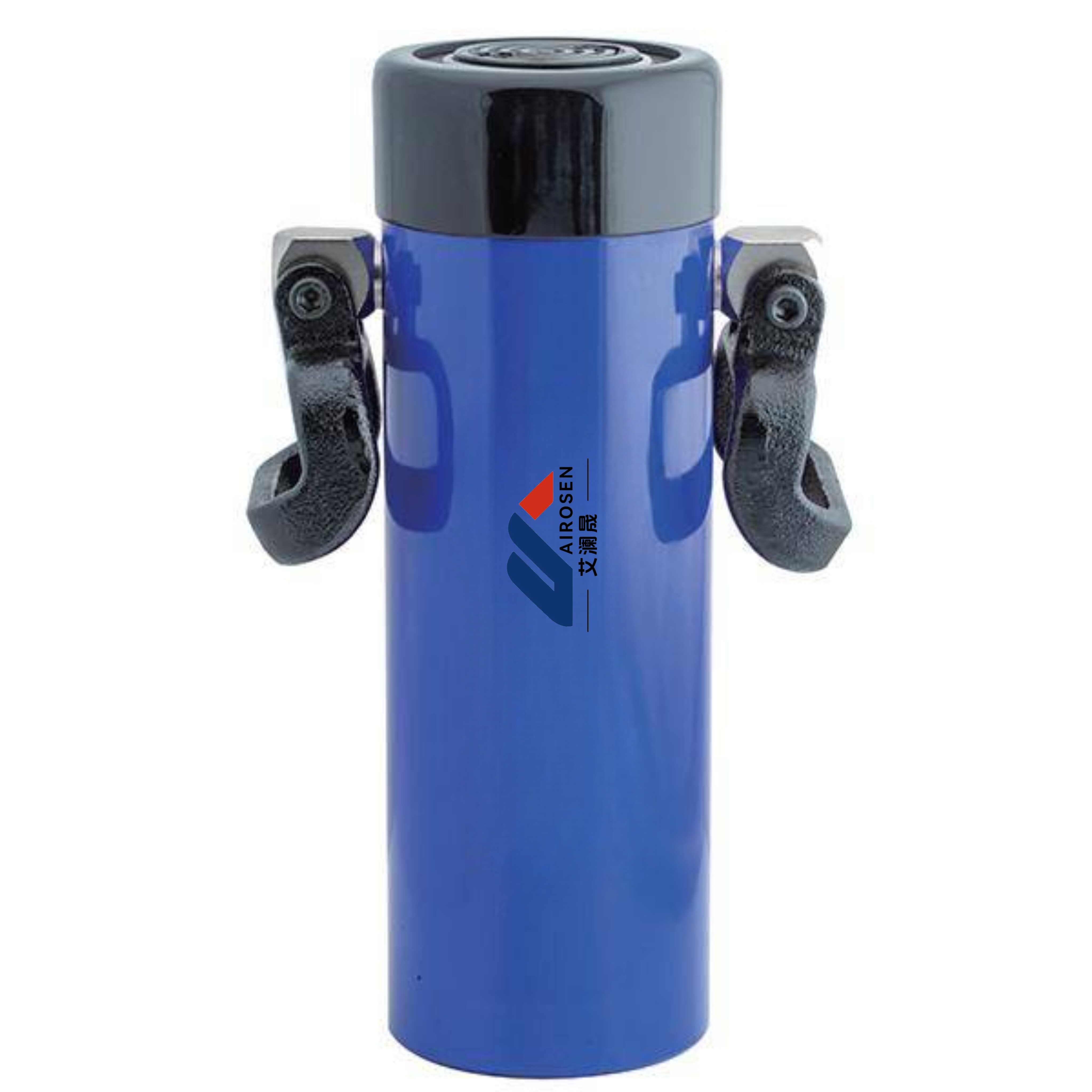

Single-acting universal hydraulic cylinder

This is a general-purpose spring-return cylinder designed for production, maintenance, and manufacturing applications.

Product Inquiry

Series:RC Series

Product Line:General-purpose hydraulic cylinder

•Hardened alloy steel rings eliminate backlash and provide support to reduce wear from eccentric loads.
•Designed for location-based
•Porcelain powder for enhanced corrosion resistance
•Ring threads, plunger threads, and base mounting holes for easy installation
•Heavy-duty locating spring
•Piston wipers reduce contamination and extend cylinder life.

The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!

Capacity:

5-95 Ton

Itinerary:

16-362mm

Folded Height:

41-492mm

Maximum Operating Pressure:

70 MPa

Weight:

1.72-6Kg

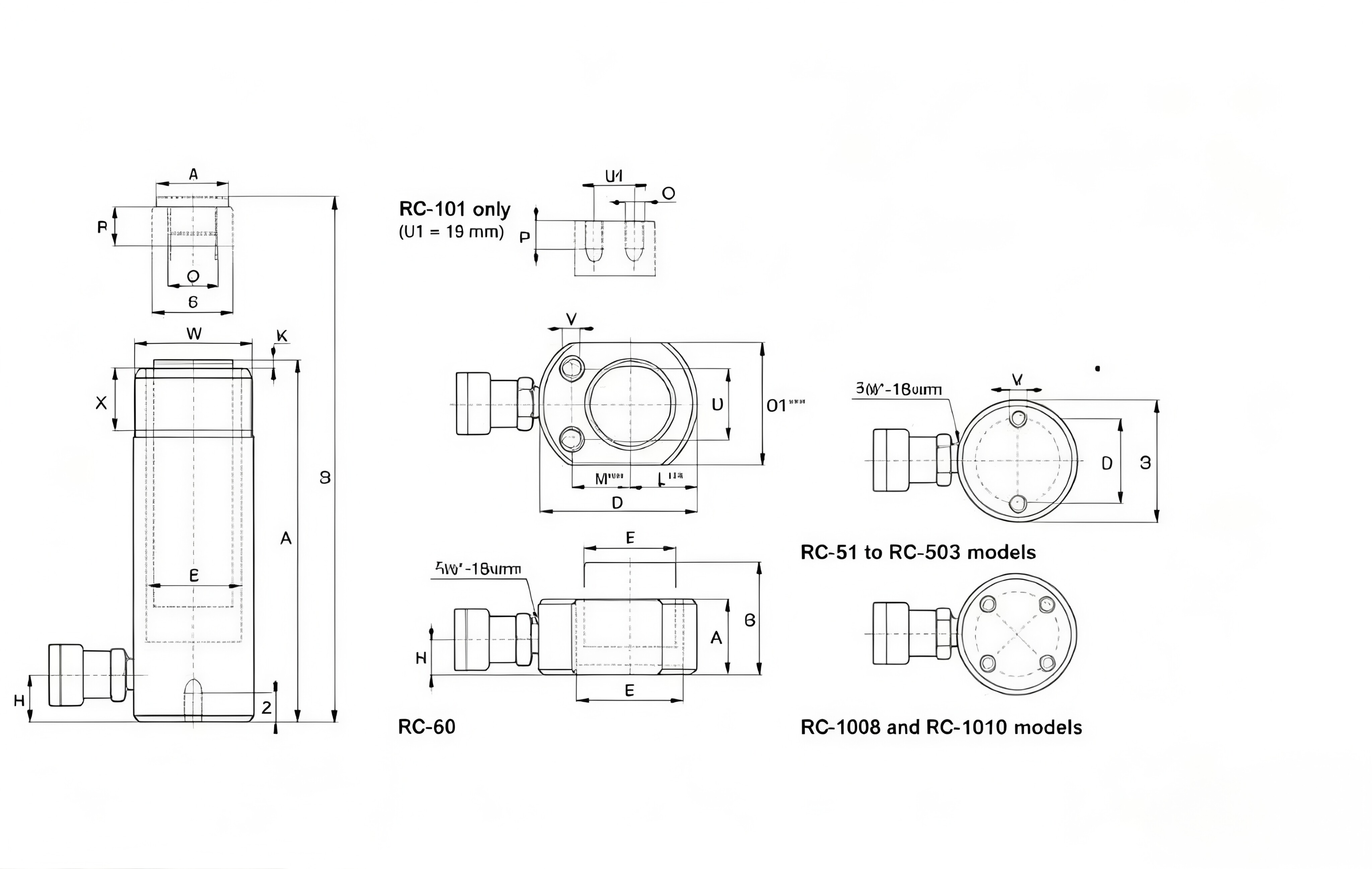

Model	Load/ton	Travel Distance/mm	Closed height/mm	Bore diameter/mm	Piston Diameter (mm)	Fuel Volume/cm³	Weight / kg
RC-50	5	16	41	38	28.7	10	1
RC-51	5	25	61	38	28.7	16	1.3
RC-52	5	60	110	38	28.7	41	1.9
RC-53	5	121	215	38	28.7	83	3.6
RC-54	5	165	315	38	28.7	111	4.9
RC-55	5	215	415	38	28.7	145	6.3
RC-101	10	26	89	57	42.9	38	1.8
RC-102	10	54	121	57	42.9	78	2.3
RC-104	10	101	227	57	42.9	145	4.1
RC-106	10	156	327	57	42.9	226	6.4
RC-108	10	203	427	57	42.9	294	8.2
RC-1010	10	257	527	57	42.9	373	10.4
RC-151	15	25	124	69	50.8	51	3.3
RC-152	15	51	149	69	50.8	104	4.1
RC-154	15	101	200	69	50.8	205	6.8
RC-156	15	152	271	69	50.8	308	9.5
RC-158	15	203	322	69	50.8	411	12.2
RC-1510	15	254	373	69	50.8	516	14.9
RC-251	25	26	139	85	65	86	5.9
RC-252	25	50	165	85	65	166	8.4
RC-254	25	102	215	85	65	339	12.2
RC-256	25	156	273	85	65	525	16.1
RC-258	25	210	325	85	65	697	20.2
RC-2510	25	261	374	85	65	867	24.1
RC-308	30	209	387	101	73.2	880	18.1
RC-502	50	51	176	127	95.2	362	15
RC-504	50	101	227	127	95.2	719	19.1
RC-506	50	156	282	127	95.2	1111	23.1
RC-5013	50	328	480	127	95.2	2389	35.1
RC-756	75	156	285	146	114.3	1503	29.5
RC-7513	75	333	492	146	114.3	3417	59
RC-1004	100	102	204	177	130.3	1353	33.1
RC-1006	100	158	264	177	130.3	2239	59
RC-1008	100	203	317	177	130.3	2706	68.8
RC-10010	100	260	449	177	130.3	3468	72.6
