Hydraulic Flange Adjuster
Suitable for maintenance, inspection, testing, and valve replacement applications
Product Inquiry
Product Description
Series:BSK Series
Product Line:Flange Maintenance Tool
- •Flange-Specific Bolt Tensioning Tool Kit, Complete Range from M20 to M100
- •Constructed from high-strength alloy steel for durability and reliability.
- •Modular design for easy portability and on-site operations
- •Includes dedicated hydraulic pump for simple, efficient operation
Security Notice
The manufacturer's rated capacity is the maximum safe limit. Best practice encourages using only 80% of these ratings!
Product Detail Images

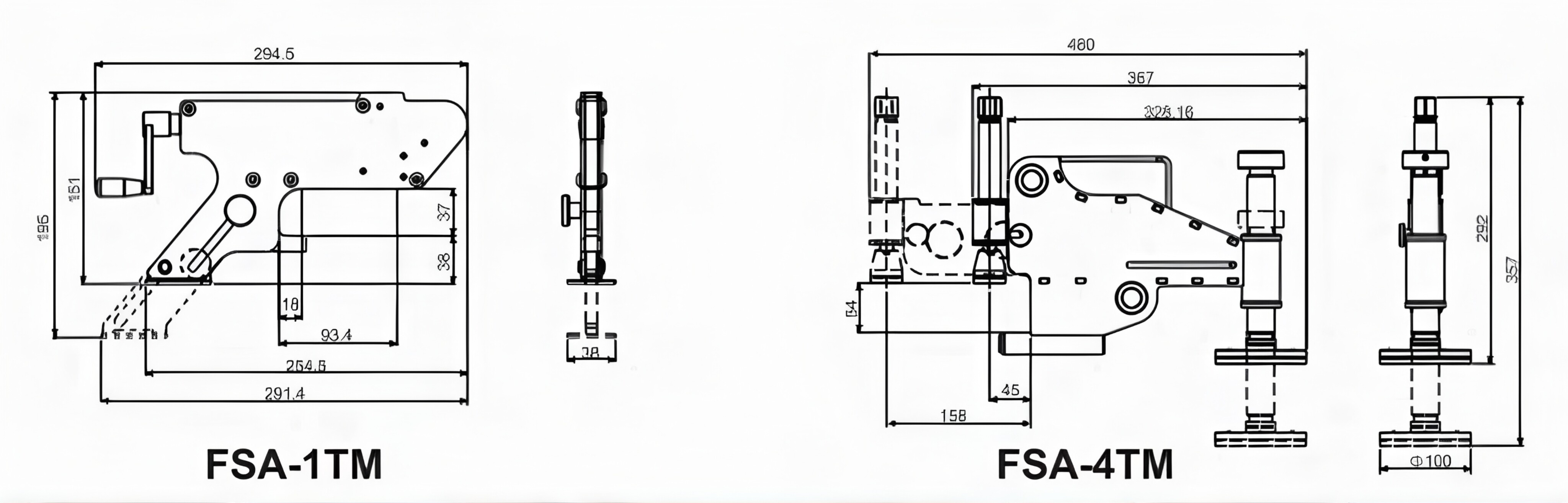

Size charts for FSA-1TM and FSA-4TM

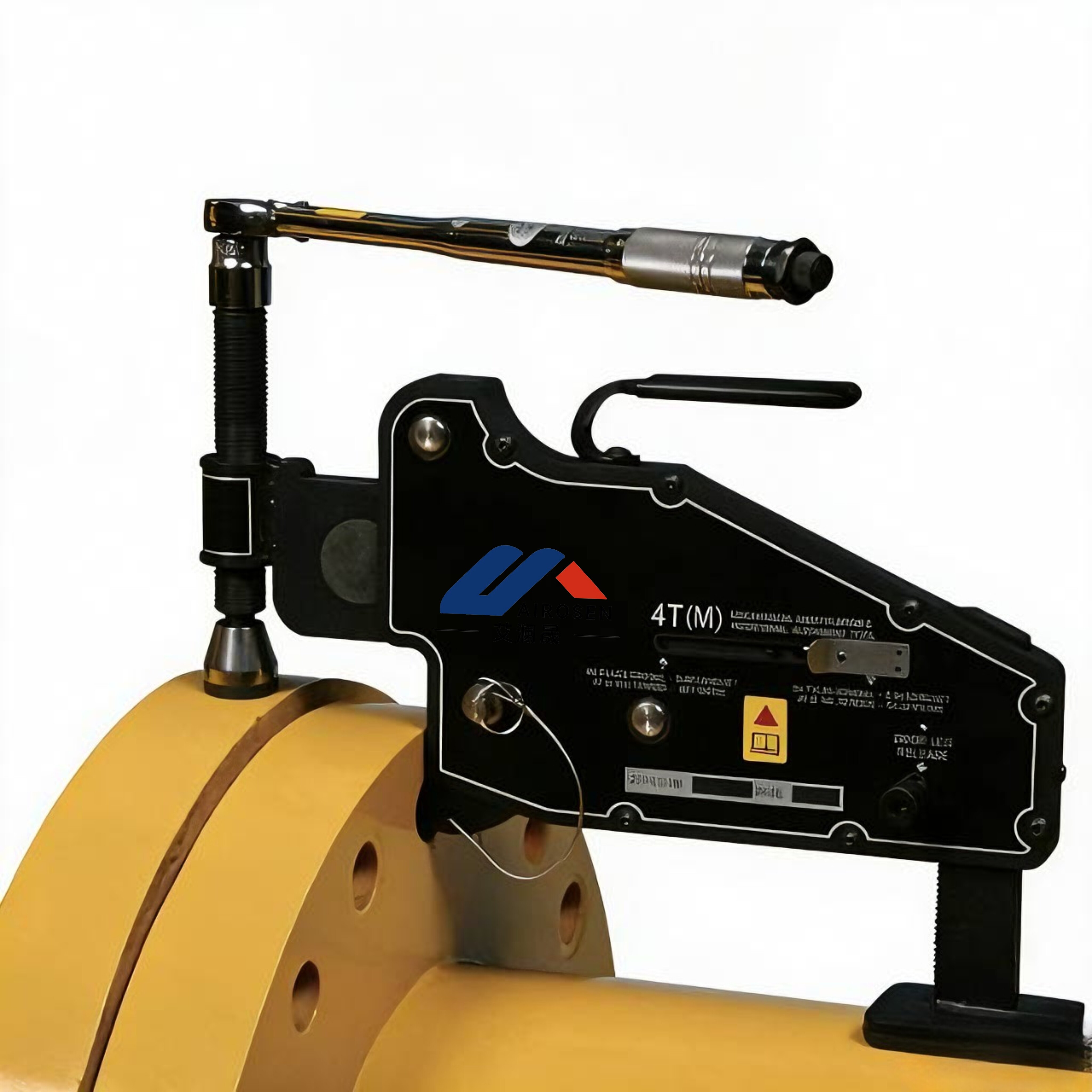

Physical Display
Product Series
| Maximum Adjustment Force | Model | Bolt hole range | Flange Thickness | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| (ton) | (kn) | (in) | (mm) | (in) | (mm) | (lbs) | (kg) | |
| 1 | 10 | FSA-1TM | 0.63 | 16 | 0.55-3.29 | 14-82 | 3.5 | 1.6 |
| 4 | 40 | FSA-4TM | 0.95 | 24 | 1.18-5.23 | 30-133 | 19 | 8.6 |
| 10 | 90 | HSA-9TM | 1.24 | 31.5 | 3.66-9.00 | 93-228 | 32 | 14.5 |
